ÄúËùÔÚµÄλÖ㺾W(w¨£ng)Õ¾Ê×í“ > ®a(ch¨£n)Æ·ÖÐÐÄ

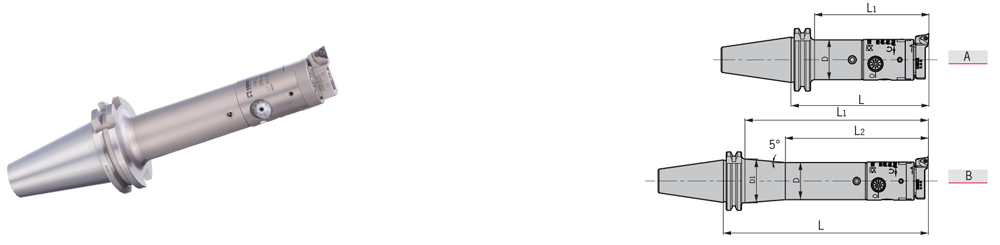

SK-FBH΢Õ{(di¨¤o)¾«ÃÜçMî^½M¼þ
|
|
·½Ê½ |
|
| |||||||||
| ÐÍÌ– |
To |
ol |
ˆDʾ |
¼Ó¹¤¹ ‡ú | ÖØÁ¿ | |||||||
|
Specifcation |
çMî^ |
µ¶±ú |
çMî^ |
Fig | D | D1 | L1 | L2 | L |
Boring Range |
Weight | |
|
|
Boring |
Adapter |
Boring Head |
|
| |||||||
|
SK30-
SK40-
SK50- |
FBH25-130 | SK30- | DCK2-80 | DCK2-FBH25-M | A | 24 | - | 104.9 | - | 130 | 29-38 | 0.69 |
| FBH32-143 | DCK3-80 | DCK3-FBH32-M | A | 31 | - | 117.9 | - | 143 | 36-52 | 1..0 | ||
| FBH40-133 | DCK4-70 | DCK4-FBH40-M | A | 39 | - | 111.9 | - | 133 | 48-68 | 1.21 | ||
| FBH50-150 | DCK5-70 | DCK5-FBH50-BM | A | 50 | - | 130.9 | - | 150 | 57-80 | 1.9 | ||
| FBH63-140 | DCK6-60 | DCK6-FBH63-BMA | A | 64 | - | 130.9 | - | 140 | 70-110 | 2.59 | ||
| FBH80-160 | DCK6-60 | DCK6-FBH80-BMB | A | 64 | - | 140.9 | - | 160 | 110-150 | 4.39 | ||
| FBH25-125 | SK40- | DCK2-75 | DCK2-FBH25-M | A | 24 | - | 99.9 | - | 125 | 29-38 | 1.25 | |
| FBH25-180 | DCK2-130L | DCK2-FBH25-M | B | 24 | 28.3 | 154.9 | 115 | 180 | 29-38 | 1.48 | ||
| FBH32-143 | DCK3-80 | DCK3-FBH32-M | A | 31 | - | 115.9 | - | 143 | 36-52 | 1.55 | ||
| FBH32-198 | DCK3-135L | DCK3-FBH32-M | B | 31 | 34.5 | 174.9 | 138 | 198 | 36-52 | 1.87 | ||
| FBH40-133 | DCK4-70 | DCK4-FBH40-M | A | 39 | - | 109.9 | - | 133 | 48-68 | 1.74 | ||
| FBH40-213 | DCK4-150L | DCK4-FBH40-M | B | 39 | 43.4 | 189.9 | 148 | 213 | 48-68 | 2.43 | ||
| FBH50-160 | DCK5-80 | DCK5-FBH50-BM | A | 50 | - | 136.9 | - | 160 | 57-80 | 2.54 | ||
| FBH63-170 | DCK6-90 | DCK6-FBH63-BMA | A | 64 | - | 150.9 | - | 170 | 70-110 | 2.92 | ||
| FBH80-190 | DCK6-90 | DCK6-FBH80-BMB | A | 64 | - | 170.9 | - | 190 | 110-150 | 4.72 | ||
| FBH25-130 | SK50- |
DCK2-80 | DCK2-FBH25-M | A | 24 | - | 100.9 | - | 130 | 29-38 | 3.73 | |
| FBH25-185 | DCK2-135L | DCK2-FBH25-M | B | 24 | 26.6 | 157.9 | 115 | 185 | 29-38 | 4.04 | ||
| FBH32-148 | DCK3-85 | DCK3-FBH32-M | A | 31 | - | 118.9 | - | 148 | 36-52 | 4.08 | ||
| FBH32-203 | DCK3-140L | DCK3-FBH32-M | B | 31 | 32.7 | 175.9 | 148 | 203 | 36-52 | 4.42 | ||
| FBH40-163 | DCK4-100 | DCK4-FBH40-M | A | 39 | - | 135.9 | - | 163 | 48-68 | 4.51 | ||
| FBH40-223 | DCK4-160L | DCK4-FBH40-M | B | 39 | 42.5 | 195.9 | 148 | 233 | 48-68 | 5.03 | ||
| FBH50-170 | DCK5-90 | DCK5-FBH50-BM | A | 50 | - | 142.9 | - | 170 | 57-80 | 5.32 | ||
| FBH50-290 | DCK5-210L | DCK5-FBH50-BM | B | 50 | 57.8 | 262.9 | 200 | 290 | 57-80 | 6.94 | ||
| FBH63-165 | DCK6-85 | DCK6-FBH63-BMA | A | 64 | - | 135.9 | - | 165 | 70-110 | 5.98 | ||
| FBH63-380 | DCK6-300L | DCK6-FBH63-BMA | B | 64 | 80.5 | 356.9 | 250 | 380 | 70-110 | 7.67 | ||
| FBH80-185 | DCK6-85 | DCK6-FBH80-BMB | A | 64 | - | 155.9 | - | 185 | 110-150 | 7.78 | ||
| FBH80-400 | DCK6-300L | DCK6-FBH80-BMB | B | 64 | 80.5 | 376.9 | 270 | 400 | 110-150 | 9.47 | ||
